TP-Link SG3452X Omada SDN 52 Port Gigabit Managed Switch 10GbE

The TP-Link SG3452X is a JetStream L2+ managed switch designed for enterprise networks, campuses, and ISPs. It features 48 Gigabit Ethernet ports and 4× 10G SFP+ uplink slots for high-bandwidth connectivity. Integrated with Omada SDN, it supports centralized cloud management, advanced L2+/L3 features, and robust security strategies, making it ideal for scalable and secure network deployments.

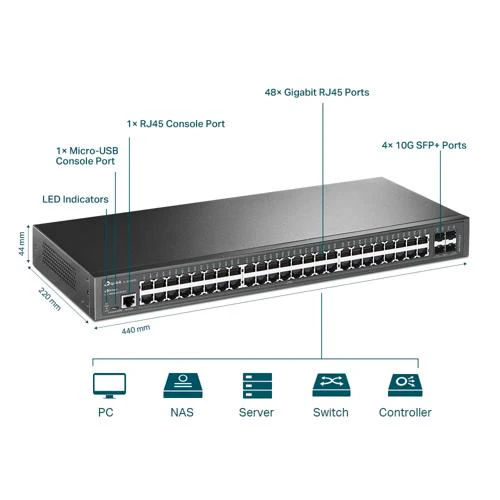

48× Gigabit RJ45 ports for reliable wired connections
4× 10G SFP+ slots for lightning-fast uplinks
176 Gbps switching capacity and 130.9 Mpps forwarding rate
Integrated Omada SDN for centralized cloud management
Supports Zero-Touch Provisioning (ZTP) and multi-site management
Advanced L2+/L3 features including VLAN, static routing, and IGMP snooping
Robust security with IP-MAC-Port Binding, ACL, DHCP Snooping, and 802.1X authentication
Fanless design for silent operation
Rack-mountable metal chassis for durability
Supports Jumbo Frames up to 9 KB
Comprehensive QoS for optimized voice and video traffic
Dual image and SNMP/RMON for advanced management

Ports
48 × 10/100/1000 Mbps RJ45, 4 × 1/10GE SFP+

Console Ports
1 × RJ45, 1 × Micro-USB

Switching Capacity
176 Gbps

Forwarding Rate
130.94 Mpps

Packet Buffer
12 Mbit

MAC Address Table
16K

Jumbo Frame
9 KB

DRAM
512 MB

Flash
32 MB

Standards
IEEE 802.3i/802.3u/802.3ab/802.3z/802.3ae/802.3az

L2 Features
VLAN, STP/RSTP/MSTP, Link Aggregation, Loopback Detection

L3 Features
16 IP Interfaces, 48 Static Routes

QoS
8 priority queues, 802.1p CoS, DSCP, WRR/SP

Security
IP-MAC-Port Binding, ACL, DHCP Snooping, DoS Defend

SDN Support
Omada Controller (Cloud/On-Premises)

Management
Web, CLI, SNMP, RMON, Omada App

Power Supply
100–240 V AC, 50/60 Hz

Max Power Consumption
32.72 W
