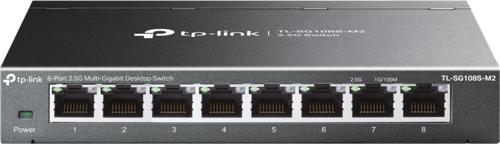

TP-Link SG108S-M2 8 Port 2.5 Gigabit Switch Steel Case

HARDWARE FEATURES:

Standards and Protocols
IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface
8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 12 VDC / 1.0 A)

LED
Power
Link/Act Indicators

Dimensions ( W x D x H )
158 × 101 × 25.4 mm

Max. Power Consumption
9.11 W

Max. Heat Dissipation
30.974 BTU/h

PERFORMANCE

Switching Capacity
40 Gbps

Packet Forwarding Rate
29.76 Mpps

MAC Address Table
4K

Jumbo Frame
12KB

SOFTWARE FEATURES

Advanced Features
Loop Prevention
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transmission Method
Store and Forward

OTHERS

Certification
CE, FCC ,RoHS

Package Content
8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108S-M2
Power Adapter
Installation Guide
Rubber Feet

Environment
Operating Temperature: -5–40 °C
Storage Temperature: -40–70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
