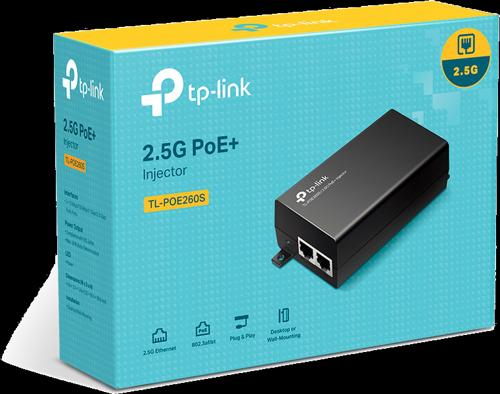

TP-Link PoE260S Power Over Ethernet Injector Adapter 2.5Gb PoE+

2*2.5 Gbps ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at

Interface
1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port 1 AC socket

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100? STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100? STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)

Max Power Consumption
Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play

LED
ON: Supplying power normally OFF: No power supply

Dimensions (W x D x H)
12559.436.8 mm

Certification
FCC, CE, RoHS

Operating Temperature
0°C to 40°C

Operating Humidity
10% to 90%RH non-condensing
