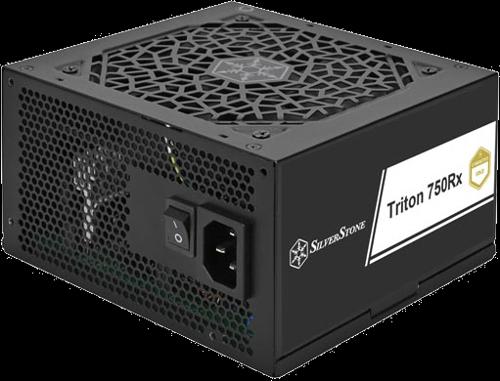

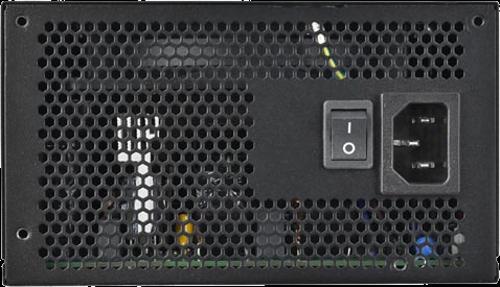

Silverstone TR750R-GF 750W ATX 80plus Gold PSU 3yr wty

Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
Latest PCIe Gen 5 standard to support up to 2X power excursion

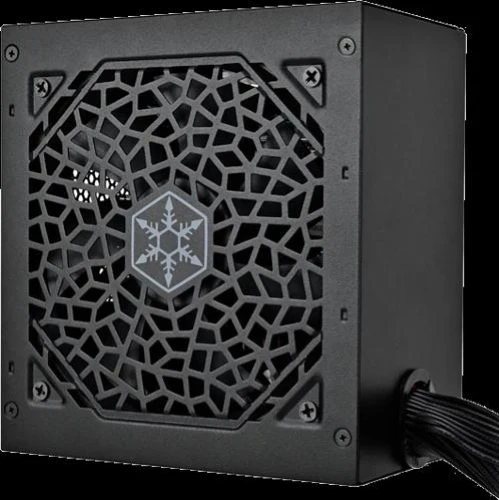

Silent running 120mm ICB cooling fan
Black embossed cable design
Main Japanese electrolytic capacitors
High efficiency with Cybenetics Gold certification
24/7 continuous power output with 40? operating temperature
Compact design with a 140mm depth for easy integration

Max DC Output
750W

Power Density
415.3W/L

Combined +3.3V & 5V
100W

Combined +12V
750W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC?PF>0.9 at full load?

Efficiency
87% ~ 89% overall efficiency

MTBF
100,000 hours

Operating Temperature
0°C ~ 40°C

Protection
Over power protection, Over current protection, Over voltage protection, Short circuit protection, Under voltage protection, Over Temperature protection,

Connectors
1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 1 x 12+4-Pin 12V-2x6 connector, 3 x 8 / 6-Pin PCIe connector, 6 x SATA connector, 2 x 4-Pin Peripheral connector,

Cooling System
Single 120mm ICB bearing fan

Noise Level
18 dBA min.

Certification
Cybenetics Gold

Form Factor
ATX (PS2)

Dimensions
150mm (W) x 86mm (H) x 140mm (D)

Weight
1.56 kg
