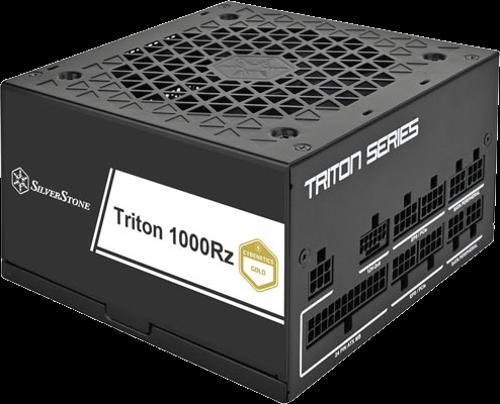

Silverstone TR1000R-GM Gold Gen5 1000W Modular ATX PSU 3yr wty

Equipped and compatible Intel ATX 3.1 specification standard with Gen5 12V-2x6 PCIe connector
Latest PCIe Gen 5 standard to support up to 2X power excursion
Silent running 120mm FDB cooling fan
Black embossed cable design.
Full Japanese electrolytic capacitors
High efficiency with Cybenetics Gold certification
24/7 continuous power output with 40? operating temperature
Compact design with a 140mm depth for easy integration

Colour
Black (lead-free paint)

Max DC Output
1000W

Power Density
553.7W/L

Combined +3.3, +5V
110W

Combined +12V
1000W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.9 at full load)

Efficiency
?87% & <89% overall efficiency

MTBF
100,000 hrs

Operating Temperature
0°C ~ 40°C

Protections
Over power protection, Over current protection, Over voltage protection, Short circuit protection, Under voltage protection, Over Temperature protection

Connectors
1x 24 / 20-Pin motherboard connector, 2x 8 / 4-Pin EPS / ATX 12V connector, 1x 12+4-Pin 12V-2x6 connector, 4x 8 / 6-Pin PCIeconnectors, 8x SATA connector, 4x 4-Pin Peripheral connector

Cooling System
Single 120mm FDB fan

Form Factor
ATX (PS2)

Noise Level
18 dB minimum

Dimensions
150mm (W) x 86mm (H) x 140mm (D)

Weight
2.7kg

Certification
Cybenetics Gold
