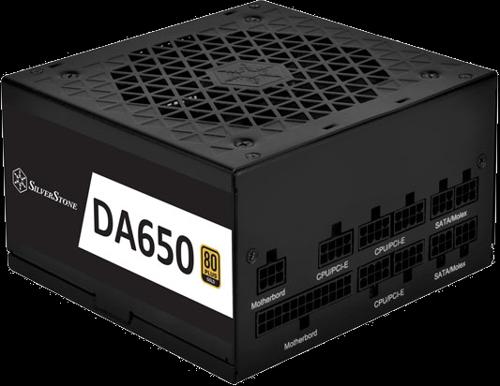

Silverstone DA650-G Gold 650W Modular ATX PSU 3yr wty

High efficiency with 80 PLUS Gold certification
24/7 continuous power output with 40? operating temperature
Class-leading single +12V rail
Silent running 120mm FDB fan with 18 dBA minimum
Japanese electrolytic capacitors
Specially designed cover increases effectiveness of residual heat dissipation
Compact design with a 140mm depth for easy integration
Strict ±3% voltage regulation and low ripple & noise

Colour
Black

Max DC Output
650W

Power Density
360W per liter

Combined +3.3V & +5V
100W

Combined +12V
648W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.9 at full load)

Efficiency
87% ~ 90% (at 20% ~ 100% loading)

MTBF
100,000 hours

Operating Temperature
0 ~ 40°C

Protection
Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection

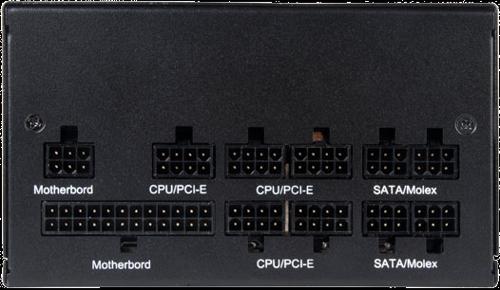

Connectors
1x 24 / 20-Pin motherboard connector (600mm) 2x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2) 2x 8 / 6-Pin PCIe connector ("650mm" x 2) 2x 8 / 6-Pin PCIe connector ("650mm / 150mm") 8x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2) 3x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector (600mm / 150mm / 150mm / 150mm)

Cooling System
Silent 120mm FDB fan

Noise Level
18 dBA minimum

Certification
80 PLUS Gold

Form Factor
ATX (PS2)

Dimensions (W x H x D)
150 x 86 x 140mm

Weight
1.42kg
