Shuttle XH510G i5-11400 8GB M.2 500GB SSD Assembled

IoT applications in the manufacturing industry have increased the needs for equipment and machinery networking, fast-response sensors, data acquisition, and more. Therefore, PCIe becomes a vital feature for platform compatibility. Thanks to Shuttle Slim XPC XH510G, a well-designed mini PC for commercial and industrial applications. With a PCIe expansion slot included, it provides installing add-on cards to meet diverse circumstances. Equipped with Intel® H510 chipset and Intel® 11th Gen i5-11400, XH510G supports high-performance computing and 4K UHD content. Besides, it features rich I/O capabilities in a compact size, offering USB 3.2 Gen 1, USB 2.0, M.2, an Intel® Gigabit LAN, an HDMI 2.0, and a DisplayPort. By taking advantage of VESA mount capability, the model can be attached to a wall mount or a monitor mount for space-constrained applications. In sum, XH510G is a standout performance for Data Acquisition System (DAQ), Digital Motion Control, Surveillance, and Kiosk.

3-liter mini PC with an extra PCI-e x 16 slot for add-on cards
Intel® H510 chipset; Intel® 11th Gen I5-11400 6C/12T
Dual-display via HDMI 2.0 and DisplayPort (DP 1.4)
8GB DDR4-2666 SODIMM
256GB PCIE3 M.2 NVME SSD
Full-size PCIe x16 slot supports single-slot expansion cards (max. 208 × 120 × 30 mm; up to 75W)
Storage support: 1× 2.5" SATA bay + 2× M.2 2280 (one supports NVMe/PCIe x4; both support SATA)
M.2 2230 E-key slot for optional Wi?Fi/Bluetooth module

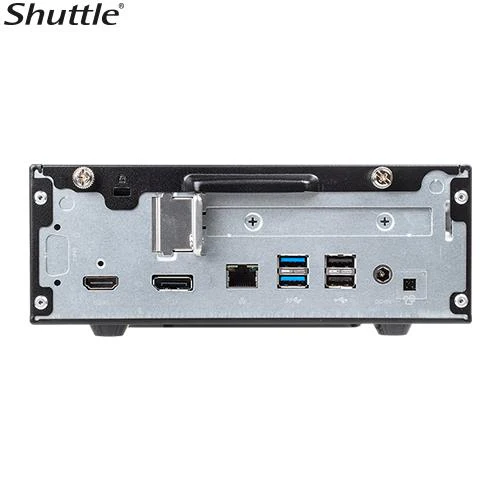

Rich I/O: 4× USB 3.2 Gen 1 and 4× USB 2.0
Intel® Gigabit LAN with Wake-on-LAN support
VESA mount capability for wall/monitor mounting
Operating temperature 0°C to 50°C; approved for 24/7 operation
Heatpipe cooling module with dual-fan design (for 24/7 stability/low noise as described by Shuttle)
