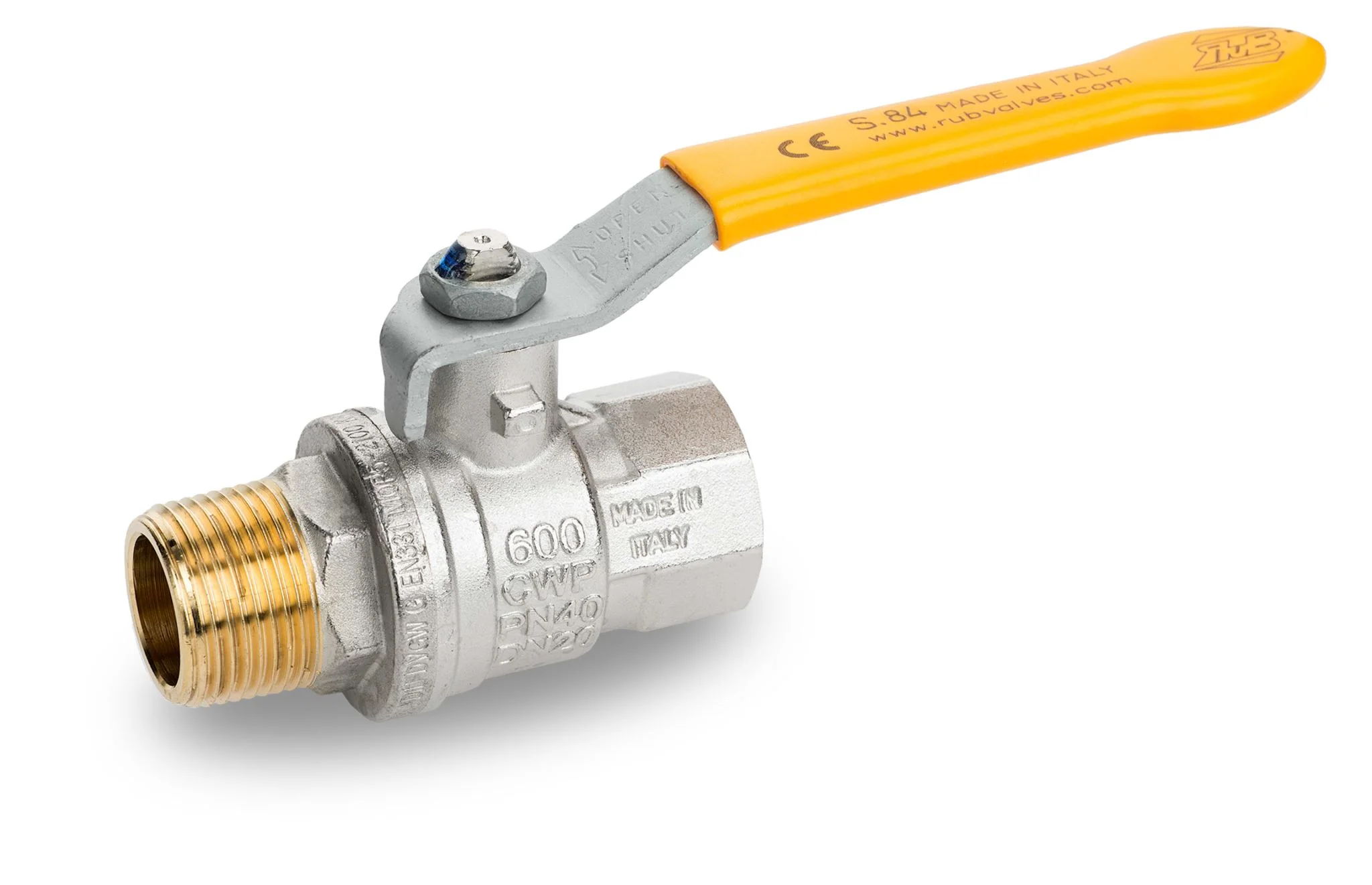

RuB s.84 Gas Brass Ball Valve with Lever Handle 20mm BSPT
Gas ball valves are commonly used in a wide range of industrial applications for controlling the flow Gases.
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
Handle clearly shows ball position
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Pure PTFE self-lubricating seats with flexible-lip design
EN10226-2, ISO 7/1, BS 21 BSPT taper female by female threads
Full port to DIN 3357 for maximum flow
Approved by the Australian Gas Association.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
S84E52
Size
20mm (3/4")
Thread
Male x Female BSPT
Handle Type
Lever
Working Pressure (non-shock cold)
40 bar (600 psi)
Temperature Range
-40C to +170C. For use with dangerous fluids temp rating -20C +60C and pressure rating is 5 bar
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
Handle clearly shows ball position
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Pure PTFE self-lubricating seats with flexible-lip design
EN10226-2, ISO 7/1, BS 21 BSPT taper female by female threads
Full port to DIN 3357 for maximum flow
Approved by the Australian Gas Association.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
S84E52
Size
20mm (3/4")
Thread
Male x Female BSPT
Handle Type
Lever
Working Pressure (non-shock cold)
40 bar (600 psi)
Temperature Range
-40C to +170C. For use with dangerous fluids temp rating -20C +60C and pressure rating is 5 bar
$15.35
Original: $43.86
-65%RuB s.84 Gas Brass Ball Valve with Lever Handle 20mm BSPTā
$43.86
$15.35Product Information
