Logitech Extend - VC via USB-C

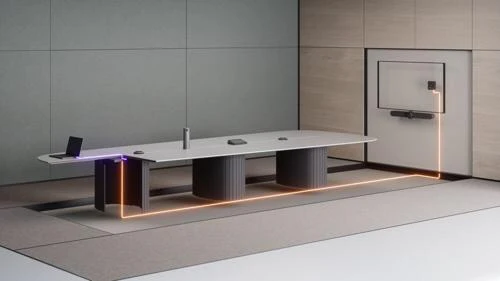

Logitech Extend gives users the ability to run meetings from their own device using a single USB-C cable. With Logitech Extend, anyone can walk into any room equipped with a Logitech conference camera in Android or BYOD mode, plug in with the USB-C cable, and launch a meeting using their preferred video platform running on their own laptop or mobile device.



Dimensions (mm)
Display Side Box: 143 (H) x 143 (W) x 34.5 (D)
Table Side Box: 143 (H) x 143 (W) x 34.5 (D)

System Requirements
Meeting Room Equipment:
Displays: HDMI 1.4 or higher
AV Devices: USB Type-A 2.0 or higher
Laptop Computers: USB Type-C port with DisplayPort Alt Mode

Compatibility
Verified Conferencing Cameras: Rally Bar, Rally Bar Mini, Rally Bar Huddle, MeetUp, MeetUp 2, and more
Verified Laptop Operating Systems: Windows 10, Windows 11, macOS (latest 2 versions)

Device Management
Logitech Sync Device Management

Ports and Interfaces
Display Side (RX): HDMI 2.0 4K60 4:4:4 2x USB 2.0 Type A Micro USB Management Interface Logitech Extend Power RJ45 to Table Side (TX)
Table Side (TX): Secured USB-C (From TX to user laptop) USB-C (optional USB-C power supply connection) RJ45 to Display Side (RX)

Inside the Box
Display Side (RX) Box, Table Side (TX) Box, USB-C to USB-C cable, Micro USB to USB-A cable, Power Supply Mounting Hardware, 1 in. (25.4 mm) Grommet Adapter, Magnetic Dock, Documentation

Mounting
VESA: 100 x 100mm
Mounting Holes: 2 through-holes for mounting directly to the wall or table (Mounting hardware included)

Power and Cables
Power Supply: Auto-sensing Operating Voltage/Power: 100-240V, 48V, 0.5A Power Supply Dimensions: 73.5 x 53 x 35mm DC Cable: 1.5m USB-C to USB-C Cable: 1.5m USB A to Micro USB Cable: 1m

Operating Temperature
0? to 40?
