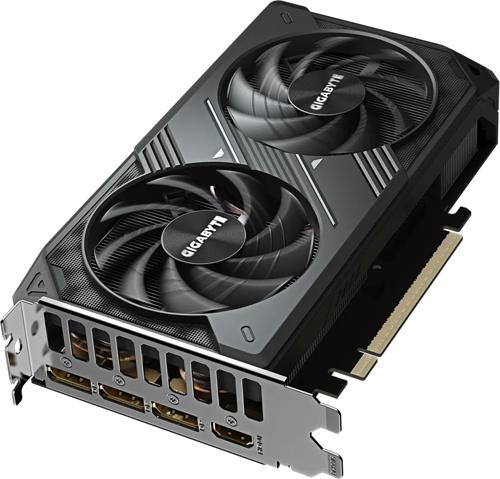

Gigabyte GV-N5060WF2MAX OC-8GD RTX5060 8GB PCIE Graphics Card

The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8GB is a discrete desktop graphics card built around the NVIDIA GeForce RTX 5060 GPU, designed to accelerate real-time graphics and compute workloads. It features 8 GB of GDDR7 memory with a 128-bit interface and comes factory overclocked with enhanced boost clocks. The card uses Gigabyte’s WINDFORCE cooling system to manage thermals and is intended for gaming and graphics-intensive desktop PC applications.

Powered by the NVIDIA Blackwell architecture with DLSS 4 support
8 GB GDDR7 graphics memory
128-bit memory interface
Factory overclocked core frequency
WINDFORCE dual-fan cooling system
PCI Express 5.0 x16 interface
Supports up to four simultaneous displays
Display outputs include DisplayPort 2.1b and HDMI 2.1b
Reinforced structure for added durability
Compatible with DirectX 12 and OpenGL 4.6

Core Clock
2512 MHz (Reference card : 2497 MHz)

CUDA® Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=199 W=116 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3 HDMI 2.1b *1

Accessories
Quick guide
