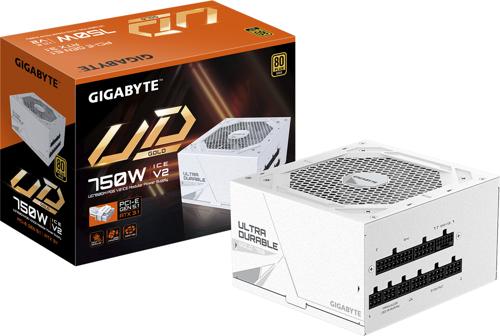

Gigabyte GP-UD750GM ICE 750W ATX Gold Full Modular PSU 5yr wty

Ultra Durable
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection
Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Currnt
16-6.5A

Input Frequency
60-50 Hz

Output Capacity
750W

Dimensions
150 x 140 x 86 mm

Fan Type
120mm Hydraulic Bearing(HYB) Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
100,000 hours

Protections
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-150ms

Hold Up Time
16ms

Cable Type
Embossed, All white

Connectors
ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm1 PCI-e 6+2 Pin x 4 : 600mm+150mm2 PCI-e 12+4 Pin x 1:700mm1 SATA x 8 : 600mm+150mm+150mm+150mm2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm1
