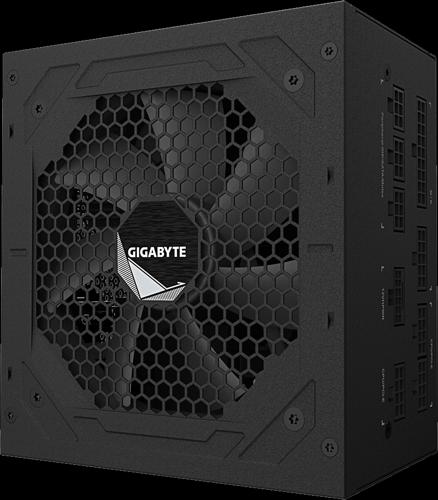

Gigabyte GP-UD1000GM 1000W ATX Gold Full Modular PSU 10yr wty

Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)

Type
Intel Form Factor ATX 12V v3.0

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Output Capacity
1000W

Dimensions
150 x 140 x 86 mm

Fan Type
120mm Hydraulic Bearing(HYB)fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
100,000 hours

Protections
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-150ms

Hold Up Time
16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm1 PCI-e 16 Pin x 1: 700mm1 PCI-e 6+2 Pin x 4 : 600mm+150mm2 SATA x 8 : 600mm+150mm+150mm+150mm2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm1
