Beelink SER9 MAX R7-H255 32GB 1TB SSD Mini PC 3yr wty Win 11 Pro
The Beelink SER9 MAX R7-H255 is a compact Mini PC featuring AMD Ryzen 7 H 255 (8C/16T, up to 4.9 GHz) with Radeon 780M graphics, 32 GB DDR5, and 1 TB PCIe 4.0 SSD. Designed for high-performance productivity, creative workflows, gaming, and virtualization, it supports triple-4K@240 Hz display output and 10 GbE networking.
AMD Ryzen 7 H 255 APU + Radeon 780M graphics deliver strong CPU and GPU performance
32 GB DDR5-5600 MT/s (2×16 GB) memory—expandable up to 128 GB
Dual M.2 2280 PCIe 4.0 ×4 slots, supporting up to 8 TB total SSD storage
Triple-display output: HDMI 2.1, DisplayPort 2.1, and USB4 (DP 1.4/PD)
10 GbE LAN port provides ultra-fast networking
Wi-Fi 6 and Bluetooth 5.2 (Intel AX200) for wireless connectivity
MSC 2.0 vapor-chamber cooling system maintains 65 W TDP and ~32 dB noise
Supports Wake-on-LAN and Auto Power On features
Full metal chassis
Windows 11 Professional Installed
Model
Beelink SER9 MAX R7-H255
CPU
AMD Ryzen 7 H 255 (8 cores / 16 threads, 3.8 GHz base, 4.9 GHz boost)
GPU
Radeon 780M iGPU (12 CUs, 2600 MHz, RDNA 3)
Memory
32 GB DDR5-5600 MT/s (2×16 GB); expandable to 128 GB (dual SO-DIMM slots)
Storage
1 TB PCIe 4.0 NVMe M.2; two slots support up to 8 TB total
Display Outputs
HDMI 2.1 (4K@240 Hz) ×1; DP 2.1 (4K@240 Hz) ×1; USB4 (DP 1.4/PD) ×1
Networking
10 GbE RJ-45 + 2.5 GbE (alternative); Intel AX200 Wi-Fi 6 + BT 5.2

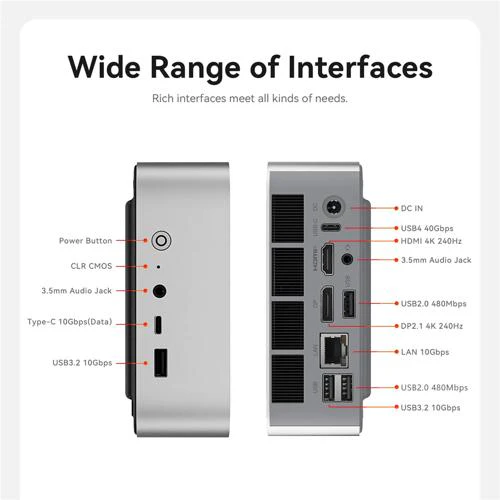

USB Ports
Front: USB-C 10 Gbps, USB-A 10 Gbps; Rear: USB-C 40 Gbps, USB-A (10 Gbps ×1, 480 Mbps ×2)
Audio
3.5 mm dual audio jacks (HP & MIC)
Cooling
MSC 2.0 vapor chamber + silent fan; <32 dB under 65 W load
Chassis Dimensions
135 × 135 × 44.7 mm
Weight
Approximately 780 g
Operating System
Windows 11 Pro pre-installed
Special Features
VESA mountable; Wake-on-LAN / Auto Power On
AMD Ryzen 7 H 255 APU + Radeon 780M graphics deliver strong CPU and GPU performance
32 GB DDR5-5600 MT/s (2×16 GB) memory—expandable up to 128 GB
Dual M.2 2280 PCIe 4.0 ×4 slots, supporting up to 8 TB total SSD storage
Triple-display output: HDMI 2.1, DisplayPort 2.1, and USB4 (DP 1.4/PD)
10 GbE LAN port provides ultra-fast networking
Wi-Fi 6 and Bluetooth 5.2 (Intel AX200) for wireless connectivity
MSC 2.0 vapor-chamber cooling system maintains 65 W TDP and ~32 dB noise
Supports Wake-on-LAN and Auto Power On features
Full metal chassis
Windows 11 Professional Installed
Model
Beelink SER9 MAX R7-H255
CPU
AMD Ryzen 7 H 255 (8 cores / 16 threads, 3.8 GHz base, 4.9 GHz boost)
GPU
Radeon 780M iGPU (12 CUs, 2600 MHz, RDNA 3)
Memory
32 GB DDR5-5600 MT/s (2×16 GB); expandable to 128 GB (dual SO-DIMM slots)
Storage
1 TB PCIe 4.0 NVMe M.2; two slots support up to 8 TB total
Display Outputs
HDMI 2.1 (4K@240 Hz) ×1; DP 2.1 (4K@240 Hz) ×1; USB4 (DP 1.4/PD) ×1
Networking
10 GbE RJ-45 + 2.5 GbE (alternative); Intel AX200 Wi-Fi 6 + BT 5.2
USB Ports
Front: USB-C 10 Gbps, USB-A 10 Gbps; Rear: USB-C 40 Gbps, USB-A (10 Gbps ×1, 480 Mbps ×2)
Audio
3.5 mm dual audio jacks (HP & MIC)
Cooling
MSC 2.0 vapor chamber + silent fan; <32 dB under 65 W load
Chassis Dimensions
135 × 135 × 44.7 mm
Weight
Approximately 780 g
Operating System
Windows 11 Pro pre-installed
Special Features
VESA mountable; Wake-on-LAN / Auto Power On
$3,642.44
Beelink SER9 MAX R7-H255 32GB 1TB SSD Mini PC 3yr wty Win 11 Pro—
$3,642.44
